Modular Range
Mega Power+
Range: 25-250 kVA
Features
- Modular Upgradable UPS
- Hot Swap - Plug In Modules
- Inbuilt Redundancy
- Green Power
- True On-line Battery VFI
- Smaller Footprints
- Low Heat Dissipation
- High Efficiency
- Built In SNMP

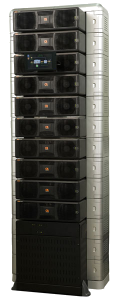

Mega Power+ is a next generation True Modular - Upgradeable Online UPS. The system comprises 1 to 10 UPS modules of 25 kVA each, a system controller, static switch module, and distribution block.
The flexible system is user upgradable from 25 kVA/ kW to 250 kVA/ kW.
UPS modules are designed for hot insertion.
Mega Power+ offers a truly modular configuration with minimized loses to the load. Each 25 kVA/KW module is entirely self-contained and ready for hot-swapping - without requiring complex and expensive stocks of components, subsystems, and spare parts. At any time, without shutting the entire unit, any module can simply be swapped with another. This enables Mega Power+ to service critical applications and data centers that cannot afford any downtime.
The UPS is perfectly suitable for capacitive loads, such as blade servers with a lower power factor.
